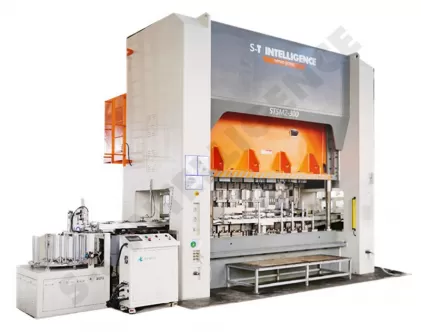

STSM2 Type Servo Straight Side Double Points Press and Automatic Stamping Line

Straight Side Double Points Press and Automatic Stamping Line

Keywords: Straight Side, Double Points, Servo Press, Square Aluminum Shell for Power Battery

STSM2 Type Servo Straight Side Double Points Press and Automatic Stamping Line
STSM2 Type Servo Straight Side Double Points Press and Automatic Stamping Line
STSM2 Type Servo Straight Side Double Points Press and Automatic Stamping Line
STSM2 Type Servo Straight Side Double Points Press and Automatic Stamping Line
STSM2 Type Servo Straight Side Double Points Press and Automatic Stamping Line
Advantages

Direct drive via servo motor, providing stamping energy in place of the flywheel for the press, eliminating clutches and brakes.

Fewer mechanical parts, less inertia of the transmission structure, lower noise level, simplified maintenance, and cheaper maintenance costs.

Precise control of the stamping process by arbitrarily setting and adjusting the servo motor speed.

Optimized stamping process curve by arbitrarily programming the operating speed, stroke position and pressure of the slide, greatly improving the accessibility and flexibility of production.

Full load operation while stamping at low slide speed (above 1 spm).

Reduced press working cycle time, enhanced production rate and production efficiency by increasing the speed of slide's return stroke.

Improvement of the accuracy and quality of stamped parts, minimization of the impact on the dies, extension of the dies' life time cycle, and reduction of the cost through utilization of low stamping stroke speed.

Efficient drive solution to reduce energy consumption.

Comprehensive energy management system, recycling of excess energy, and controlling instantaneous energy release during stamping.

Handwheel fine-tuning function, significantly reducing the time of tryout.

Same safety and logic control as mechanical press.

Features
  • Main Structure:
    Gantry welding frame (Mono-block)
  • Main Transmission Form:
    Top drive, vertical double crankshafts double point servo press
  • Anti-Eccentric Load:
    The guide rail adjustment adopts an anti-eccentric load structure to ensure the vertical precision of the slide during transfer stamping
  • Lubrication:
    The main drive bearing part is lubricated with thin oil
  • Main Motor:
    Low-speed high-torque water-cooled servo motor, ensuring reliable operation over extended periods
  • Operation Modes:
    Multiple preset curve modes and free programming modes. Including Crankshaft Mode, Coining Mode, Drawing Mode, Forging Mode, Heating in-die Mode, Precision Blanking Mode, Pendulum Mode, Free Programming Mode.
Applications

1. Single-press transfer production line for automotive parts, production rate 40-50 PPM

2. Single-press transfer production line for square aluminum shell for power battery, production rate 40-50 PPM

3. Automatic stamping tandem line for square aluminum shell for power battery, production rate 80-120 PPM

Specification

Square Aluminum Shell for Power Battery Reference Table


Type of Square Aluminum Shell for Power BatteryShell Size(Width X Length X Height)mm*mm*mmType of Servo PressForce ofServo Pressmm
2614826*148*91STSM2-250350
3914839*148*91STSM2-250350
267026*70*120STSM2-300400
4617346*173*130STSM2-300400
4617346*173*170STSM2-400450
2614826*148*172STSM2-400450
2614826*148*199STSM2L-400600
4617346*173*200STSM2L-300600
2714827*148*240STSM2L-400700
3613036*130*235STSM2L-400700
4017340*173*204STSM2L-400700
5314853*148*178STSM2-400600
5317353*173*200STSM2-400600
7117371*173*200STSM2-400600


Specification


TypeUnitSTSM2-200STSM2-250STSM2-300STSM2L-300STSM2-400STSM2L-400
ForceKN200025003000300040004000
Point of Forcemm555767
Strokemm300/350300/400350/400600600700
Number of Strokesspm1~551~551~551~401~401~40
Die Height (Max.)mm600650700750800850
Die Height Adjustmentmm120120120120120120
Slide Size (Length X Width)mm x mm2200x12002200x12003200x12003200x12003200x12004000x1400
Bolster Size (Length X Width)mm x mm2200x12002200x12003200x12003200x12003200x12004000x1400
Bolster Thicknessmm200200250250250250
Side Opening Size (Width X Height)mm x mm1200x8001200x8001200x8001200x8001200x8001200x800
Height of Bolster over the Floormm700700700700700700
External Power Voltage/380V 50Hz380V 50Hz380V 50Hz380V 50Hz380V 50Hz380V 50Hz
Control Circuit Voltage/DC24VDC24VDC24VDC24VDC24VDC24V
Air Pressure LevelMPa0.550.550.550.550.550.55
Components/Functions

Main motor is Low Speed High Torque Servo Motor. Brand: S-T Intelligence.

Servo Drive & Control System, Brand: S-T Intelligence.


Slide pneumatic-hydraulic overload protection: slide stops automatically when the load


is 10% more than the nominal capacity.


Overload reset time (after the slide stops at TDC) <180seconds.


Manual blown-off can be carried out when the mode switch is at "test" position.


Eight-points square guides for slide. Super-long guiding. Perpendicularity between the slide movement and bolster top has been kept.


Slide bottom made of only one steel plate.


Electrical die height adjustment device. Adjusted only at normal counterbalance pressure, hydraulic protection and lubrication.


Automatic stop at upper and lower adjustment limit.


Manual adjustment by functional keys / hand wheel. Automatic adjustment by preset value.


Counterbalance Pressure to be adjusted manually / automatically, interlocking with adjustment motor of slide and the control of servo motor.


The frame is of welded structure with stress-relief.


The welding groove form and weld selection meet the standards, and CO2 gas shielded welding is used. Special inspections such as non-destructive testing are carried out on key welds.


After welding, the press machine body undergoes treatment to eliminate internal stress. Eliminating the deformation of components and instability in the overall geometric accuracy of the press structure caused by stress release after long-term operation of the press.


To ensure the accuracy and reliability of the dimensions of large parts such as the machine body, all welding of large parts is completed on the boring and milling machining center, with one clamping to ensure the geometric accuracy of the press.

Our Service
- Customized Product
- Customized Product
Except product with standard specification, we also provide customized machine to satisfy your special need.
- Maintenance and Repair
- Maintenance and Repair
We offer free repair service to products with warranty. For products out of warranty, we can also offer repair service and original parts at favorable price.
-Training
-Training
Technical training is available for hardware and software operation, mechanical training, electrical training, safety protection, troubleshooting, preventative maintenance, both in-house and on-site.
-Support Services
-Support Services
Technical support is available via telephone, email, or remote diagnosis, for troubleshooting, as needed in 7x24. Our professional service team can also provide long-term life cycle management methods and Internet functions such as remote maintenance and remote monitoring. We are always on hand to help you with any issues.

-Our Policy

Press Accuracy standard:

JIS Level 1 accuracy.


Acceptance Procedure:

1. Pre-acceptance at manufacture's site by two parties and before the shipment per Acceptance Form based on technical agreement.

2. Final Acceptance at customer's site by two parties per Acceptance Form based on technical agreement.


Press Installation:

1. The press manufacturer provides the foundation condition diagram of the press, and the user of the press entrusts a professional civil engineering unit to conduct geological survey and foundation design of the installation site based on the foundation condition diagram. The construction of the press foundation is carried out according to the construction drawings provided by the professional civil engineering company.

2. When the foundation of the press is completed and meets the installation requirements, the manufacturer of the pressure mechanism shall dispatch an installation instructor; Before installing the press, the user of the press should ensure that the water, electricity, and air required for installation and debugging are in place, and prepare cleaning oil, consumables, transmission lubricating oil, and other items required for installation and debugging.

3. In case of any changes or adjustments to other technical agreements or requirements that have not been fully covered, both parties shall jointly negotiate and determine in a friendly manner.


Technical Support & Training:

1. The manufacture will supply the 7x24 technical support and service to the customer.

2. The instruction manual for the press machine will be provided to the customer after installation and final acceptance.

3. The manufacture is responsible for providing equipment application knowledge and technical training to the buyer's relevant personnel.


-Deliveries

Delivery time will be following the clause form the Sales Contract between two parties.

Press will be shipped after Pre-acceptance at manufacture's site.


Confirmation of installation conditions:

1. Before the installation of the press, the manufacture shall confirm the "Essential Installation Conditions" with the customer in writing. The buyer shall confirm the conditions and sign and stamp before replying.

2. The manufacture shall prepare an installation work plan based on the buyer's installation conditions and status before the installation begins.

3. During the installation process, the customer shall provide the manufacture with the installation tools (including handling tools and lifting tools) as described in the "Essential Installation Conditions".


-Warranty information

1. The warranty period of press is 12 months from the end date of acceptance on customer's site.

2. During the warranty period, the manufacture shall provide spare parts and necessary maintenance guidance free of charge for any abnormal wear and tear of the press components, as well as damage caused by press failures (not operational errors).

3. If the press is damaged due to operational errors or other human factors during the warranty period, the manufacture may negotiate with the customer to collect relevant fees according to the situation.

4. After the warranty period expires, the timeliness of service is the same as within the warranty period. The manufacture is responsible for assisting customer in equipment maintenance (only charging reasonable fees).

5. The manufacture provides lifelong maintenance services and the best priced supply of spare parts for the press equipment.
